0.6/1kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Fire Resistant Power & Control Cables

Application

These fire resistant elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications where fire integrity is essential.

Standards

 BS 7917
 IEC 60331-31 Fire resistant
 IEC 60332-3A Flame retardant
 IEC 60754-1; IEC 60754-2 Corrosivity
 IEC 61034-2 Smoke density
 Cold bend and impact (-40°C) (on request)
 CSA C22.2 No. 38-95 (on request)

BS 6883&BS7917 Offshore & Marine cables

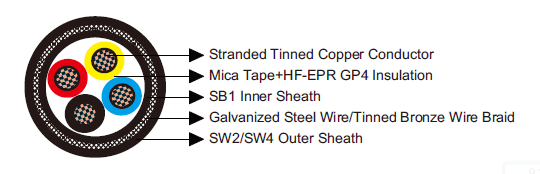

Construction

 Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
 Insulation: Mica tape + HF-EPR GP4 according to BS 7655 1.2.
 Inner Sheath: Halogen free thermosetting compound SB1 according to BS 7917.
 Armour: Galvanized steel wire braid or tinned bronze wire braid (single core). Copper wire braid can be offered upon request.
 Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius: 6×OD
Temperature Range: -40℃ ~ +90℃

Dimensions and Weight

Single core cables

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Minimum Diameter Over Inner Sheath	Maximum Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Approx. Weight
(mm²)	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1×4	1	1	6.7	8	0.3	1.1	10.2	12.1	245
1×6	1	1	7.2	8.5	0.3	1.1	10.8	12.6	275
1×10	1	1	8.1	9.5	0.3	1.2	11.9	13.8	355
1×16	1	1.1	9.3	10.7	0.3	1.2	13.1	15	440
1×25	1.2	1.2	11.5	13.2	0.3	1.3	15.4	17.7	600
1×35	1.2	1.2	12.3	14.1	0.3	1.4	16.5	18.8	720
1×50	1.4	1.3	14.1	15.9	0.3	1.4	18.2	20.6	910
1×70	1.4	1.3	15.8	17.8	0.3	1.5	20.2	23	1170
1×95	1.6	1.4	18.1	20.2	0.3	1.6	22.6	25.6	1510
1×120	1.6	1.5	20	22.4	0.3	1.7	24.7	27.7	1830
1×150	1.8	1.6	22	24.6	0.3	1.8	26.9	30.1	2160
1×185	2	1.7	24.4	27	0.45	1.9	30.2	33.9	2790
1×240	2.2	1.8	27.5	30.3	0.45	2	33.5	37.3	3530
1×300	2.4	1.9	30.4	33.6	0.45	2.1	36.6	40.5	4280

Multicore cables

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Minimum Diameter Over Inner Sheath	Maximum Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Approx. Weight
(mm²)	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
2×1.5	0.8	1.1	9	10.4	0.3	1.2	12.7	14.7	310
2×2.5	0.8	1.1	9.8	11.4	0.3	1.2	13.6	15.5	355
2×4	1	1.2	11.8	13.5	0.3	1.3	15.7	18	475
2×6	1	1.2	12.9	14.6	0.3	1.4	17	19.3	580
2×10	1	1.3	14.9	16.8	0.3	1.4	19	21.4	750
2×16	1	1.4	17.1	19.1	0.3	1.5	21.4	24.3	980
2×25	1.2	1.5	21.2	23.7	0.3	1.7	25.9	29	1380
2×35	1.2	1.6	23.1	25.7	0.3	1.8	28	31.2	1710
2×50	1.4	1.7	26.5	29.2	0.45	2	32.5	36.3	2370
2×70	1.4	1.9	30.3	33.5	0.45	2.1	36.5	40.5	3100
2×95	1.6	2.1	34.9	38.2	0.45	2.3	41.4	46	4020
2×120	1.6	2.2	38.4	42.2	0.45	2.5	45.4	50.1	4870
3×1.5	0.8	1.1	9.6	11	0.3	1.2	13.3	15.3	345
3×2.5	0.8	1.1	10.4	12.1	0.3	1.3	14.4	16.4	405
3×4	1	1.2	12.6	14.3	0.3	1.3	16.5	18.8	540
3×6	1	1.2	13.8	15.5	0.3	1.4	17.9	20.2	660
3×10	1	1.3	15.9	17.8	0.3	1.5	20.2	23	910
3×16	1	1.4	18.2	20.3	0.3	1.6	22.8	25.7	1200
3×25	1.2	1.6	22.9	25.4	0.3	1.8	27.8	30.9	1760
3×35	1.2	1.7	24.9	27.6	0.45	1.9	30.7	34.4	2260
3×50	1.4	1.8	28.5	31.3	0.45	2	34.5	38.4	2880
3×70	1.4	2	32.7	35.9	0.45	2.2	39	43.5	3800
3×95	1.6	2.2	37.5	41	0.45	2.4	44.3	48.9	4890
3×120	1.6	2.3	41.3	45.3	0.45	2.6	48.5	53.7	6070
3×150	1.8	2.5	45.8	49.9	0.45	2.8	53.3	58.7	7270
3×185	2	2.7	50.9	55.5	0.45	3	58.8	64.9	8970
3×240	2.2	2.9	57.5	62.4	0.45	3.2	65.8	72.2	1350
4×1.5	0.8	1.1	10.5	12.1	0.3	1.3	14.4	16.4	395
4×2.5	0.8	1.1	11.4	13.1	0.3	1.3	15.4	17.6	465
4×4	1	1.2	13.8	15.6	0.3	1.4	17.9	20.3	640
4×6	1	1.3	15.3	17.3	0.3	1.5	19.6	22.5	790
4×10	1	1.4	17.7	19.7	0.3	1.6	22.2	25.1	1070
4×16	1	1.5	20.3	22.8	0.3	1.7	25	28.1	1460
4×25	1.2	1.7	25.5	28.1	0.45	1.9	31.3	35	2140
4×35	1.2	1.8	27.7	30.5	0.45	2	33.7	37.5	2670
4×50	1.4	1.9	31.8	35	0.45	2.2	38.1	42.1	3630
4×70	1.4	2.1	36.3	39.7	0.45	2.4	43.1	47.7	4740
4×95	1.6	2.3	41.7	45.7	0.45	2.6	48.9	54.1	6290
4×120	1.6	2.5	46.2	50.3	0.45	2.8	53.7	59.2	7670
5×1.5	0.8	1.1	11.4	13.1	0.3	1.3	15.4	17.6	455
7×1.5	0.8	1.2	12.6	14.4	0.3	1.3	16.6	18.9	530
12×1.5	0.8	1.3	16.8	18.8	0.3	1.5	21.2	24	790
19×1.5	0.8	1.4	19.9	22.4	0.3	1.6	24.4	27.5	1080
27×1.5	0.8	1.6	24.3	26.9	0.3	1.8	29.2	32.8	1460
37×1.5	0.8	1.7	27.4	30.4	0.45	1.9	33.2	37	1990
5×2.5	0.8	1.2	12.7	14.4	0.3	1.3	16.6	18.9	560
7×2.5	0.8	1.2	13.9	15.6	0.3	1.4	18	20.3	650
12×2.5	0.8	1.4	18.7	20.8	0.3	1.6	23.2	26.2	970
19×2.5	0.8	1.5	22.1	24.7	0.3	1.7	26.8	30	1360
